AD Systems Flex 15
  • AD Systems Flex 15

AD Systems Flex 15

7011000013
Bedømmelse

AD Systems Flex 15

18.000,00 kr.
Inkl. moms
Levering: 3 til 10 dage
Antal

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Beskrivelse

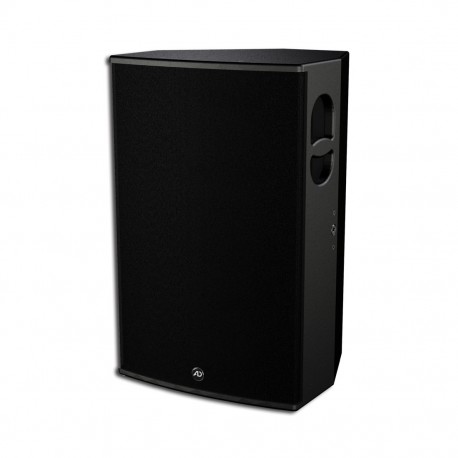

Flex15 Loudspeaker

The Flex15 is a bi-functional high-power loudspeaker and is equipped with a 15” cone loudspeaker and a 1” high frequency driver. The 75° x 50° radiating horn is rotatable to achieve 50° x 75° directivity.

A complex passive crossover matches the components perfectly and allows for full-range application without additional electronics. The Flex15 is a universal tool which can be used as a FoH speaker, as a wedge, and as a mid-high unit in combination with our Flex-Series Subs.

For easy and efficient cable connection as a wedge or near-fill, 4 Speakon NL4 are available. There are two connectors on the rear and two on the bottom.

Application

• Front of house system
• Use at compact Wedge
• Frontfill / Nearfill
• Rotatable CD horn
• Bi-functional enclosure design

Enclosure
15 mm birch plywood with structure paint and monitor angles
Basic layout
2-way passive system, bass-reflex tuning
Protective Grille
1.5 mm grille, covered with acoustic foam
Components
15“ neodymium low-mid speaker
1“ neodymium compression driver with 1.7“ voice coil
rotatable CD-Horn passive crossover with phase correction
Frequency Response
70 Hz–19,5 kHz
Power handling RMS | peak
400 W RMS | 1,600 W Peak
Nominal Impedance
8 Ω
Dispersion pattern
75° x 50°
Sensitivity
98 dB
SPLmax
130 dB | peak | 1 m
Connectors
NL4: 1+/1- , 4 times, 2 on the rear, 2 on the bottom
Dimensions (w x h x d)
450 x 700 x 390 mm
net weight
22 kg
Accessories
U-bracket, double flight case, transport cover
