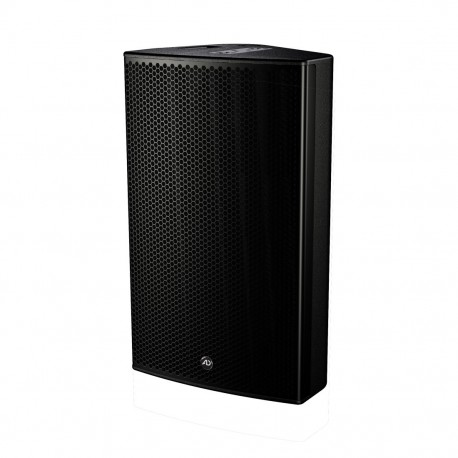

Magnus15 Universal loudspeaker

The Magnus15 is a bi-functional premium class loudspeaker system incorporating a 15” neodymium low-mid transducer and a 1.4” exit neodymium high frequency driver. Its high frequency horn has been designed using latest BEM (boundary element method) techniques and has an extremely homogeneous directivity pattern of 75° x 50°. It is rotatable by 90° to get a 50° x 75° pattern.

The Magnus series has been engineered for semi-active drive and thus unites the economic advantages of a passively crossed over loudspeaker with the sound quality, reliability and performance of an actively (i.e. DSP) controlled system. Its internal passive network provides optimal frequency division and phase alignment of both ways, and thus excellent directivity characteristics. Equalization, speaker protection and powering is provided through our AD-Systems Impuls series system amplifiers.

The elegant, asymmetric shaped enclosure of the Magnus systems is available as left and right version and is covered with a robust Polyurea coating. Its multi-functional design allows operation on poles or loudspeaker stands, suspended (with bracket) or as stage monitor wedge.  For flexible connection there are two Speakon NL4 sockets on the rear as well as one NL4 socket on top and bottom sides respectively.

Bifunctional universal loudspeaker

As a true all-purpose tool, the Magnus15 is usable as stand-alone full range loudspeaker, compact stage monitor or as mid-high unit in combination with a subwoofer.

Application

• FOH loudspeaker system
• High-End Monitor Frontfill / Nearfill
• Expandable with subs forming a powerful front PA
